TKC Robot
Set up your computer to use SNAP (like Scratch)
Set up your computer to teach your Robot
Bluetooth pairing your robot with your computer and connecting within SNAP
Install SNAP
SNAP is a re-write of Scratch with extra capabilities
SNAP is a drag and drop programming language very similar to Scratch written by people at UC Berkley http://snap.berkeley.edu/. SNAP allows you to create, import and export custom blocks. There is a special version of Scratch that works with Arduino called SNAP4Arduino (S4A). You can get S4A here http://s4a.cat/snap/.
Bluetooth Hardware
Does your computer have Bluetooth?

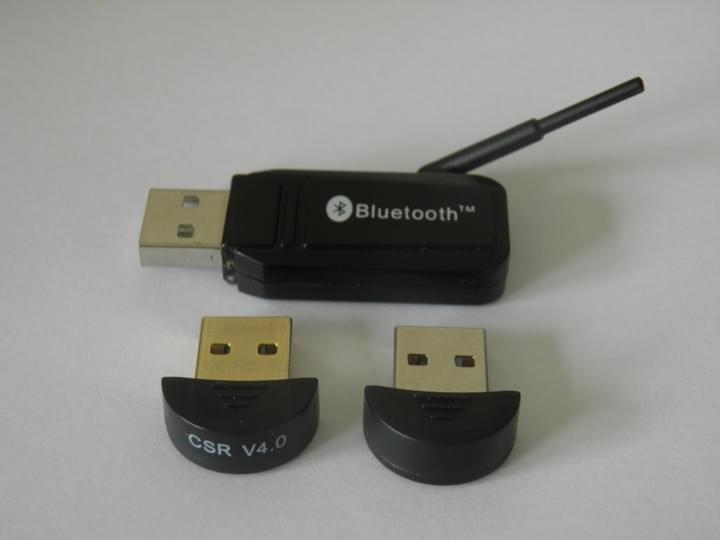

If your computer doesn't have Bluetooth built-in you will need an external Bluetooth dongle that is compatible with Bluetooth V2 (some V4 dongles are not backwards compatible).
Dual mode Bluetooth dongles based on CSRv4 are cheap, compatible, and work OK.
Often cheap CSR dongles come with identical MAC numbers: they will conflict is used at the same time. You can change the MAC numbers of the CSR dongles using a bootable Linux USB and these instructions: http://blog.petrilopia.net/linux/change-your-bluetooth-device-mac-address/
Is your robot listening?
Get the right firmware
S4A requires that your Arduino chip has been loaded with the Firmata program to listen for incoming commands. If your robot is doing the SOS blink when it first boots up, then it has the program MBTRv7 on it. You need to use the Arduino IDE to install Standard Firmata using the USB connection. Hopefully you were supplied with an Arduino chip with a hybrid version and don't have to worry about this.
Testing Firmata
Check your robot is ready for S4A
Turn your robot on and connect using Blueterm+ on an Android phone. After connecting you should see the reply "Standard Firmata'.
Note: you also need a Bluetooth chip that has been reprogrammed to talk to Firmata. When you look for your robot in Bluetooth it should have a name like 'snapBot-9387'.
SNAP4Arduino with Windows 7
Paring and connecting to your robot
Get started

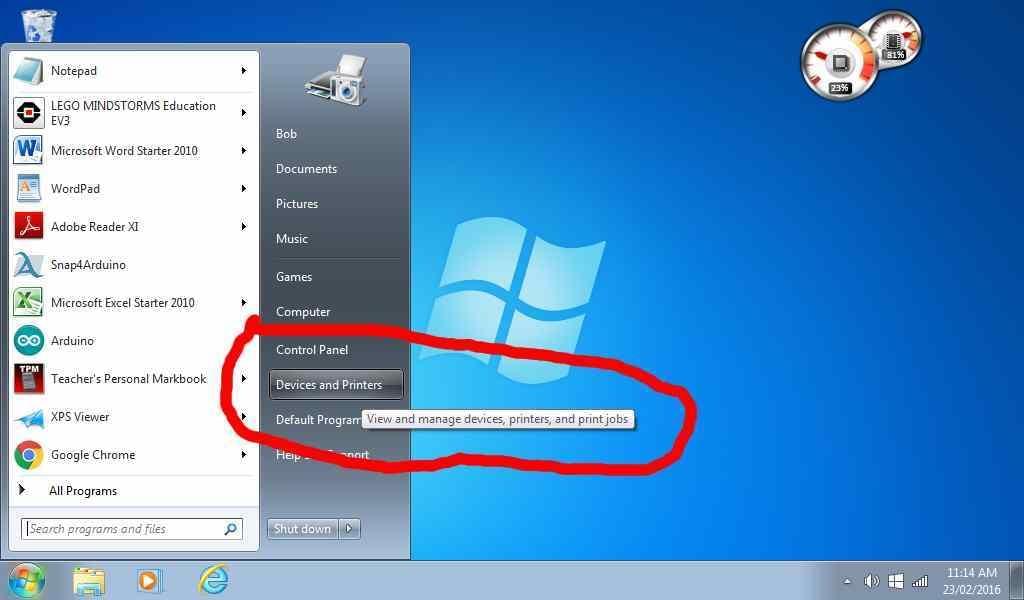

Go to the 'Devices and printers'

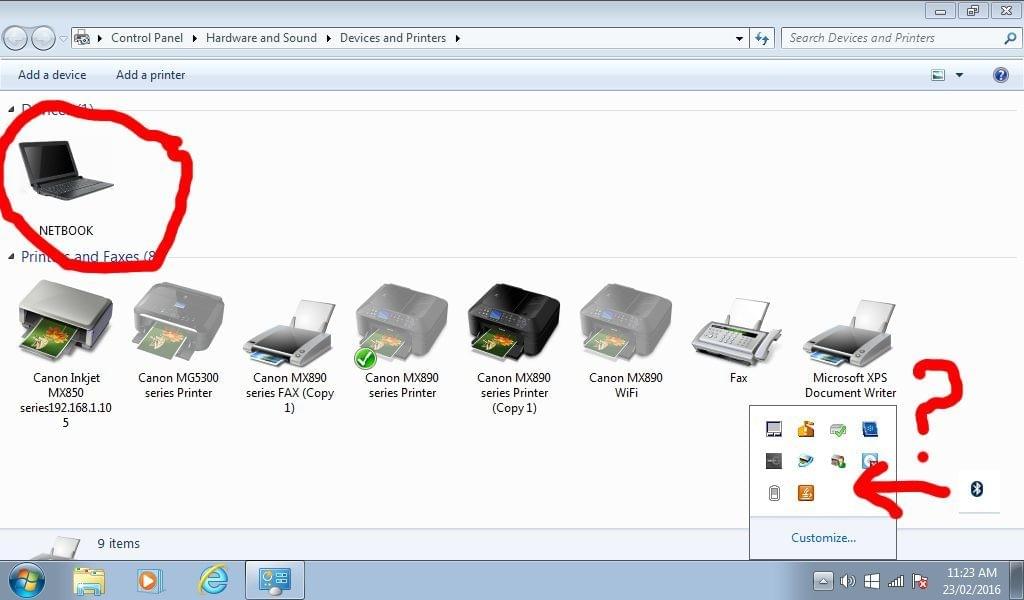

Is Bluetooth on?
If there is no Bluetooth icon in the corner, right click on your laptop and go to Bluetooth settings to turn on Bluetooth.

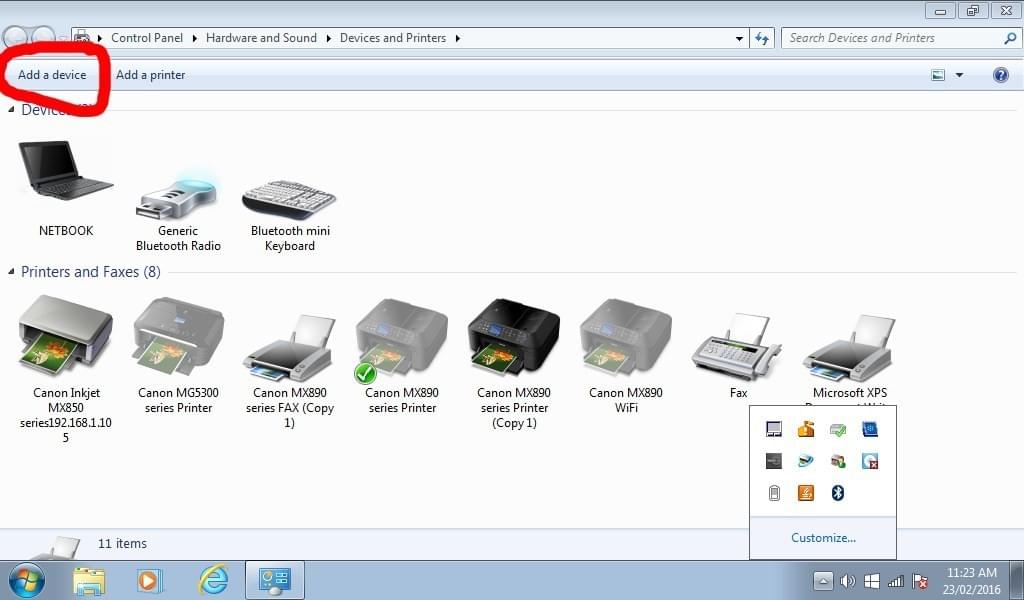

Add a Bluetooth device
Click on the 'Add a device' button

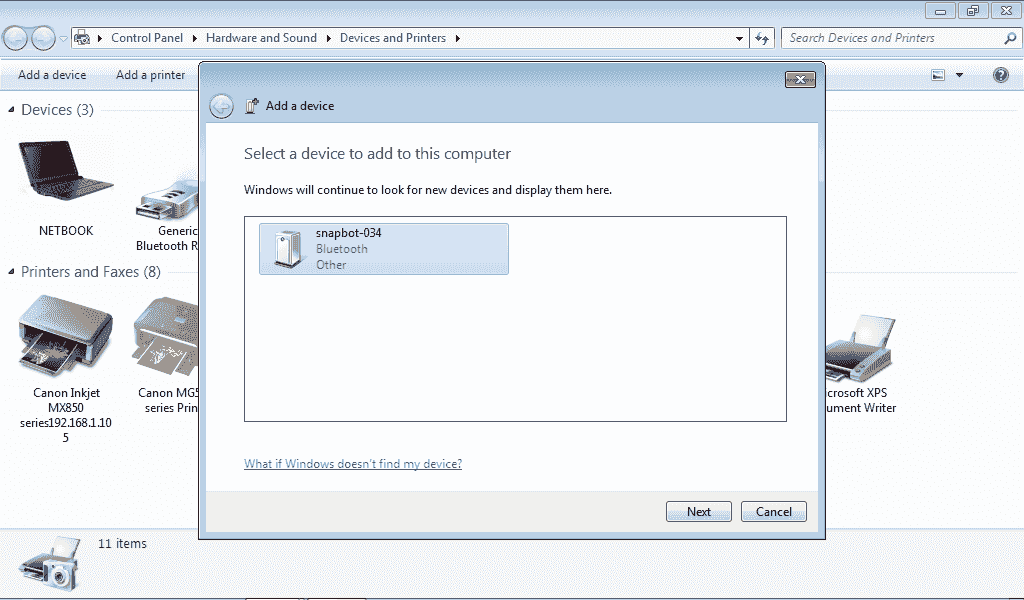

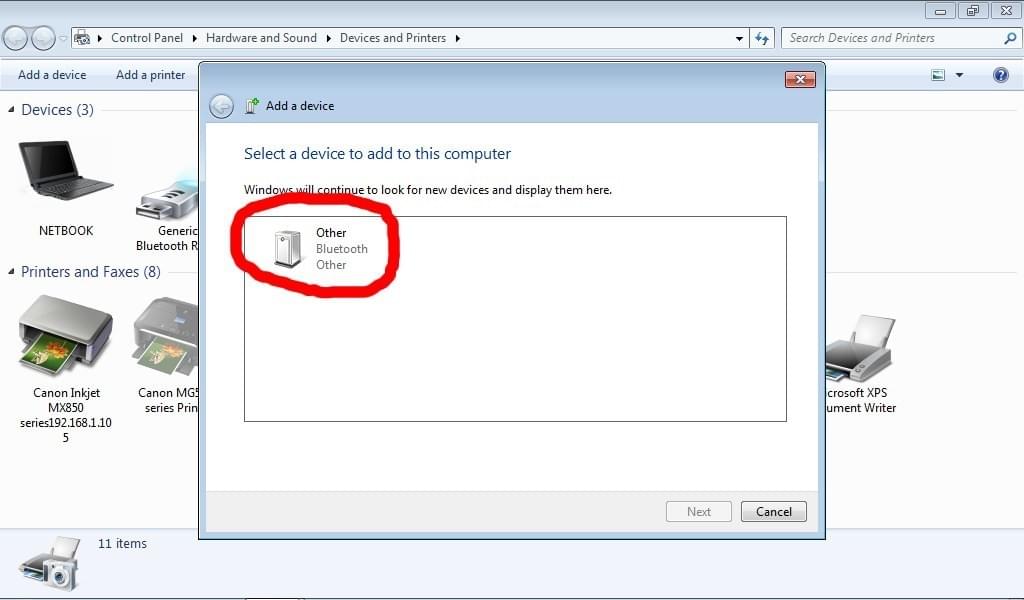

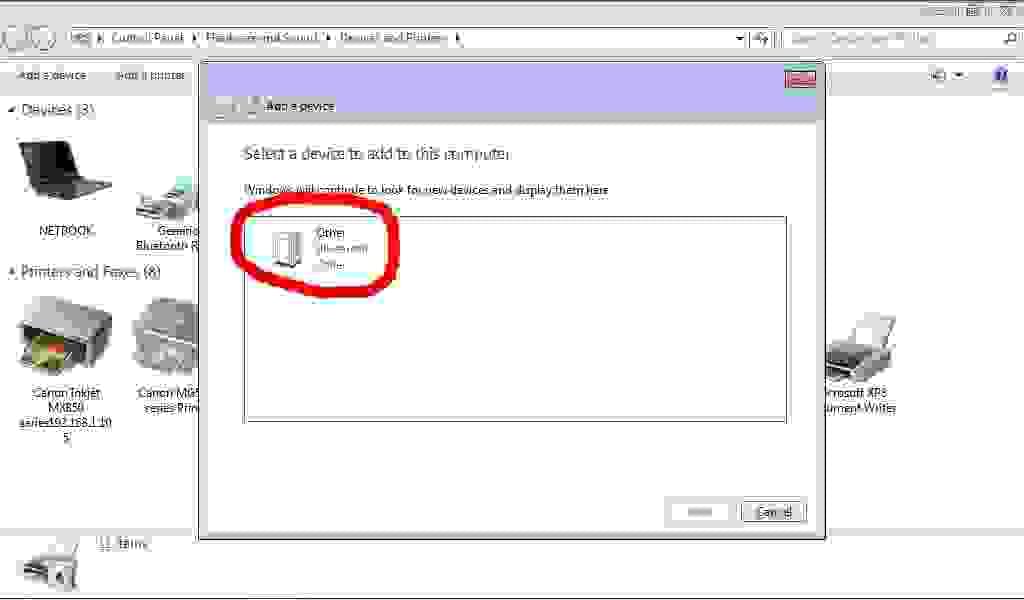

Find your robot
Your computer will scan for Bluetooth devices. If your robot is turned on and the Bluetooth LED is blinking fast, your robot should appear in the box. It takes 5-10 seconds to pick up the name of your robot. Until then it just says 'other'.
Correct Bluetooth speed?
When your computer gets the name of your robot it should be something-like 'snapbot-034'. If it says 'HC-05' then the Bluetooth connection speed will not work with S4A. Contact Mr. Elliott to fix this problem.
Click once on the snapbot and then click next.

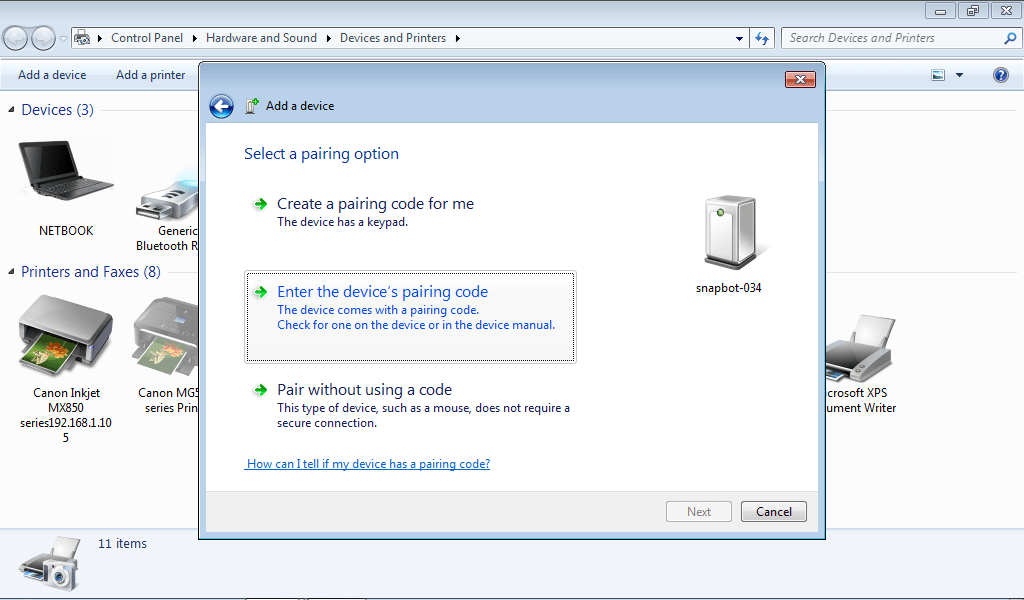

Pair with PIN
Click on the button that says "Enter the device's pairing code' and then click next.

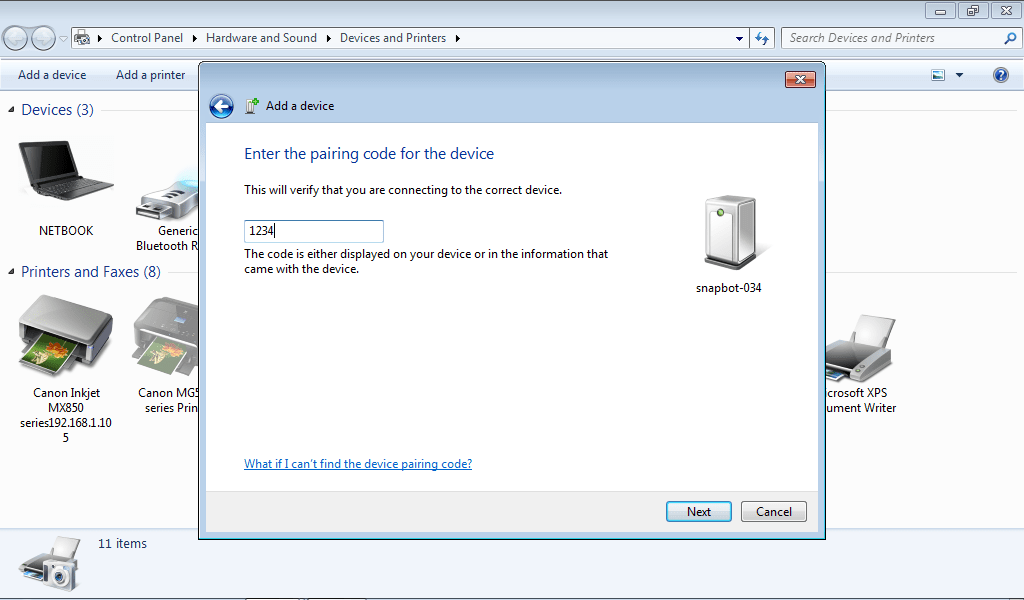

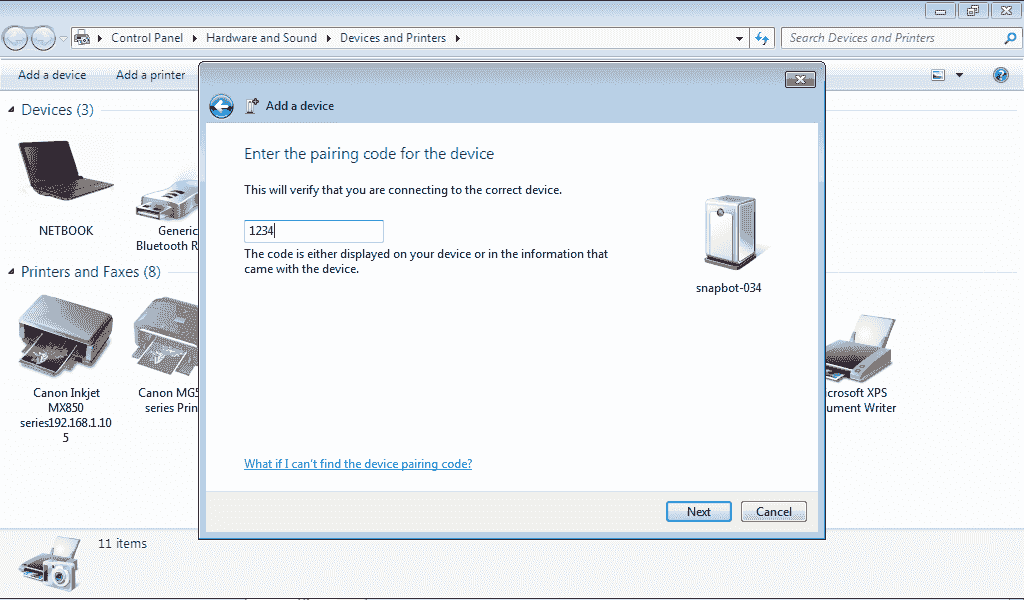

Enter the pin code
The default pin code for our robots (and many Bluetooth devices) is 1234

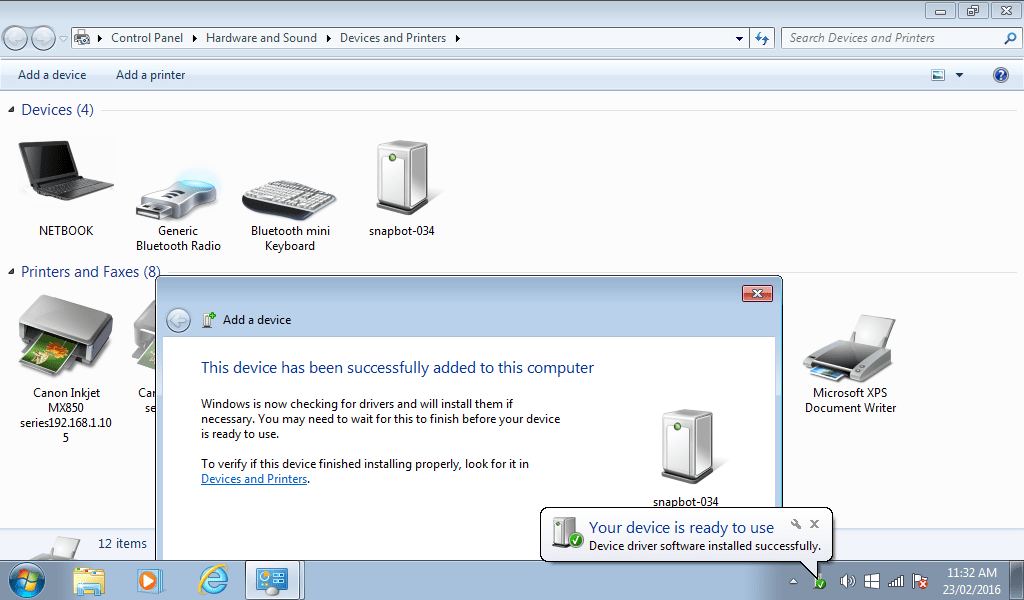

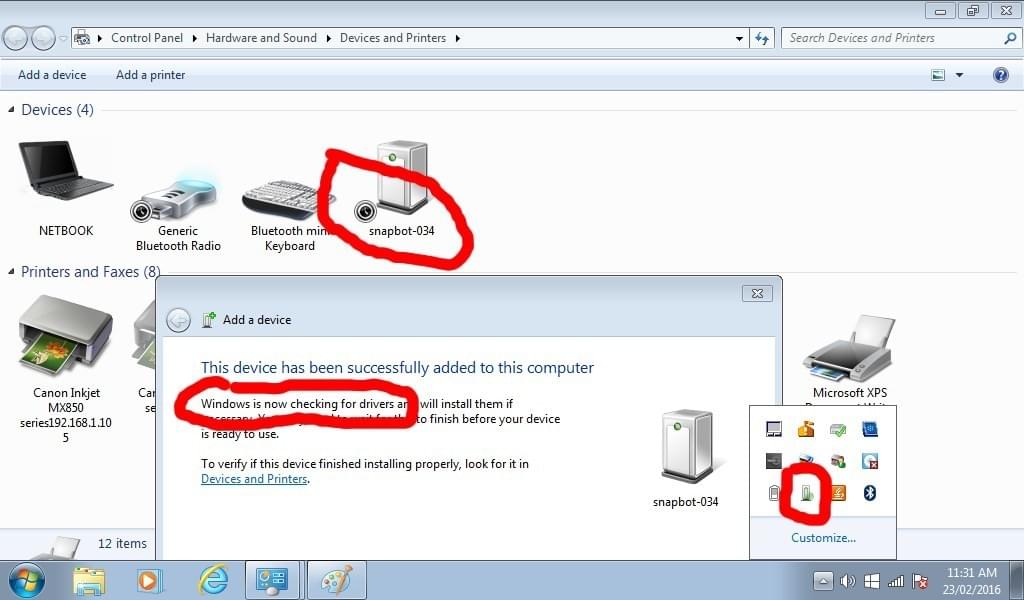

Not quite there yet!
Even though your computer has paired with the robot it still needs to install drivers. The little black clock circle means that the computer is still searching for drivers. This can take several minutes
Ready to Go!
Now your robot is ready to control using S4A

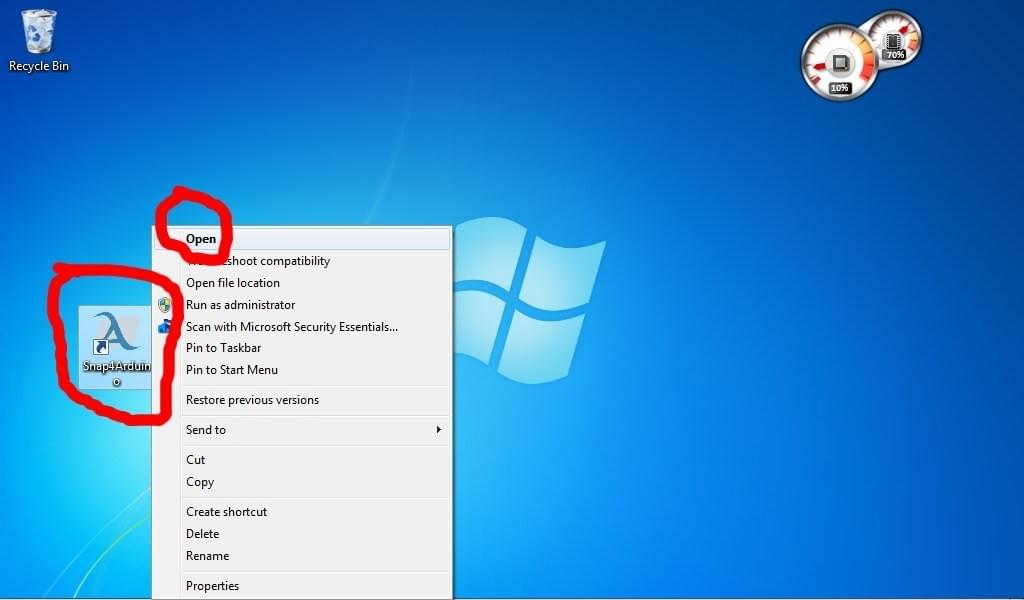

Open S4A
Right-click on the Snap4Arduino icon and choose open
Connect to robot
Right-click on the sprite and choose connect to Arduino
Which one?
Which one of the COM ports is my robot on? Look to the next two slides to find out.

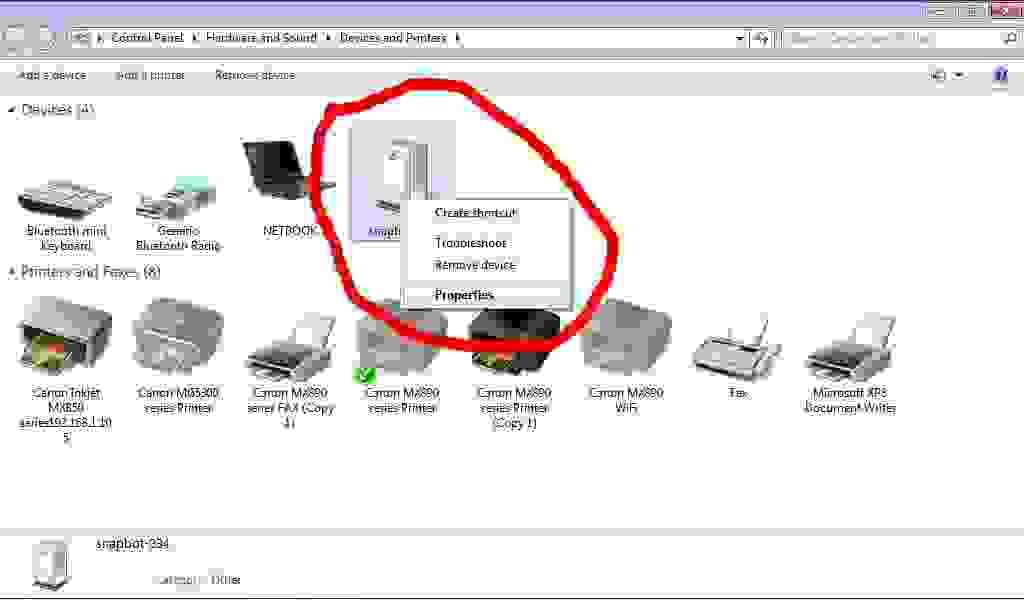

Check properties
Go back to 'Devices and printers', right-click on your robot, and choose properties.

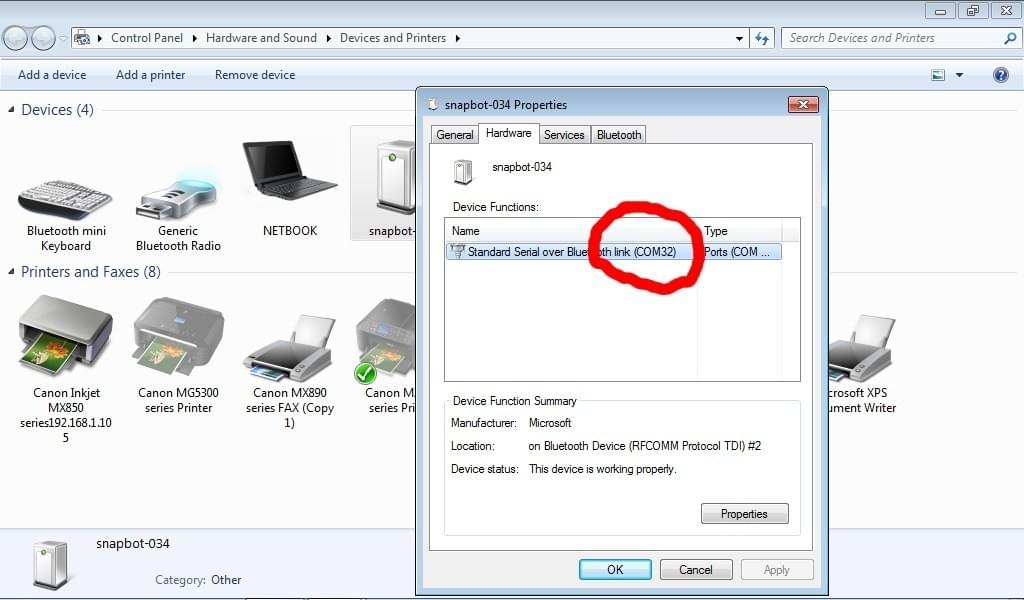

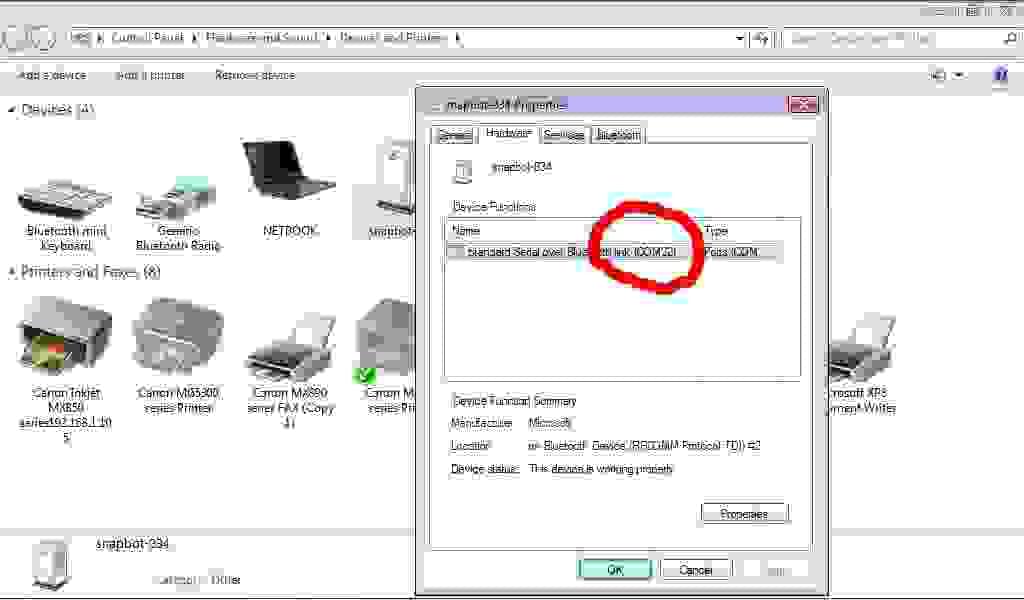

Look for COM
The standard Serial over Bluetooth will have the number of the COM port: something like COM32
Now go back to S4A and choose COM32

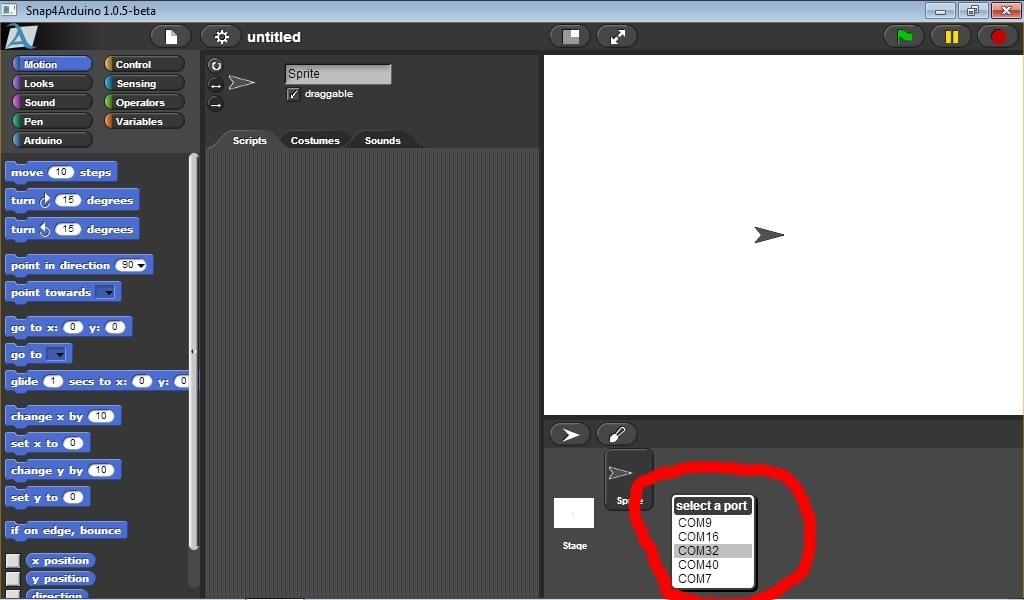

Select a port
Select the port number from the previous step

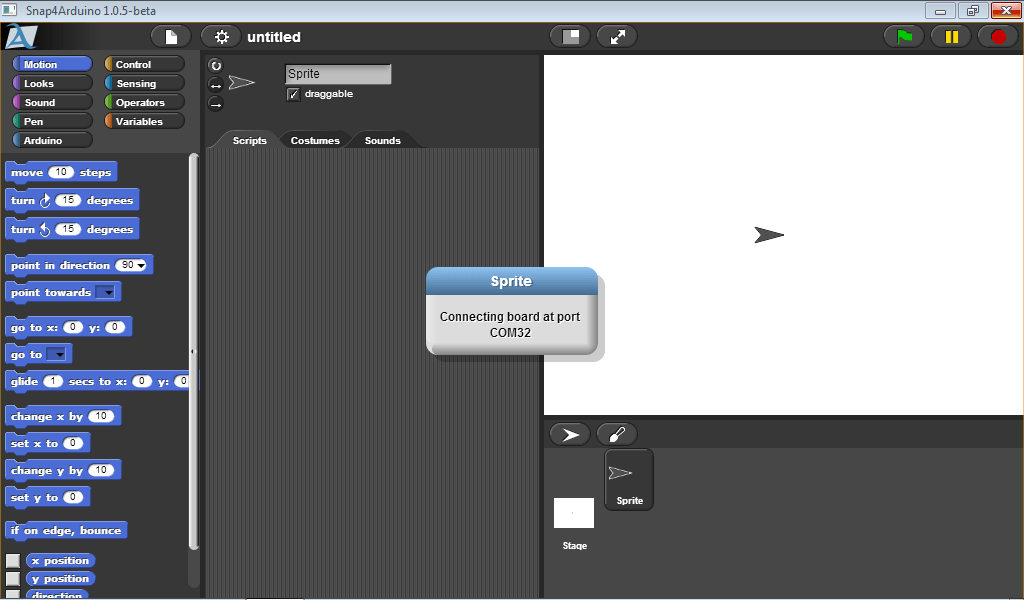

Almost there!
S4A is searching for your robot over Bluetooth

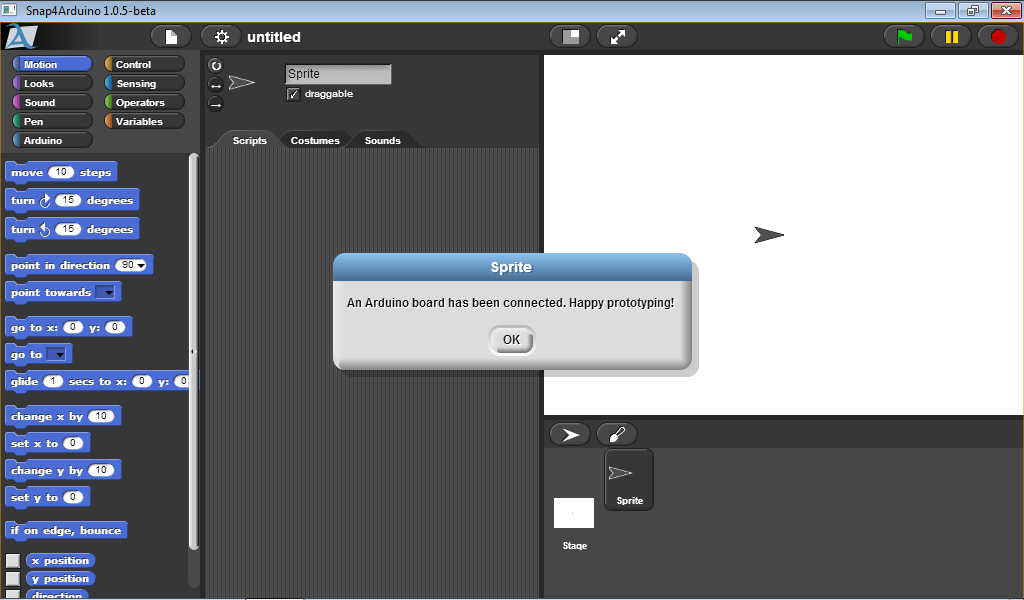

You are ready!
Your computer has connected to your robot and you are ready to write s4A programs.
Testing your set up
Blink the LED on your Arduino
A simple program
Make this simple program to test your setup. When you push the space bar (or click on the yellow block at the top of the stack). More details on programming your robot can be found at this URL: http://teachmybot.strikingly.com/
